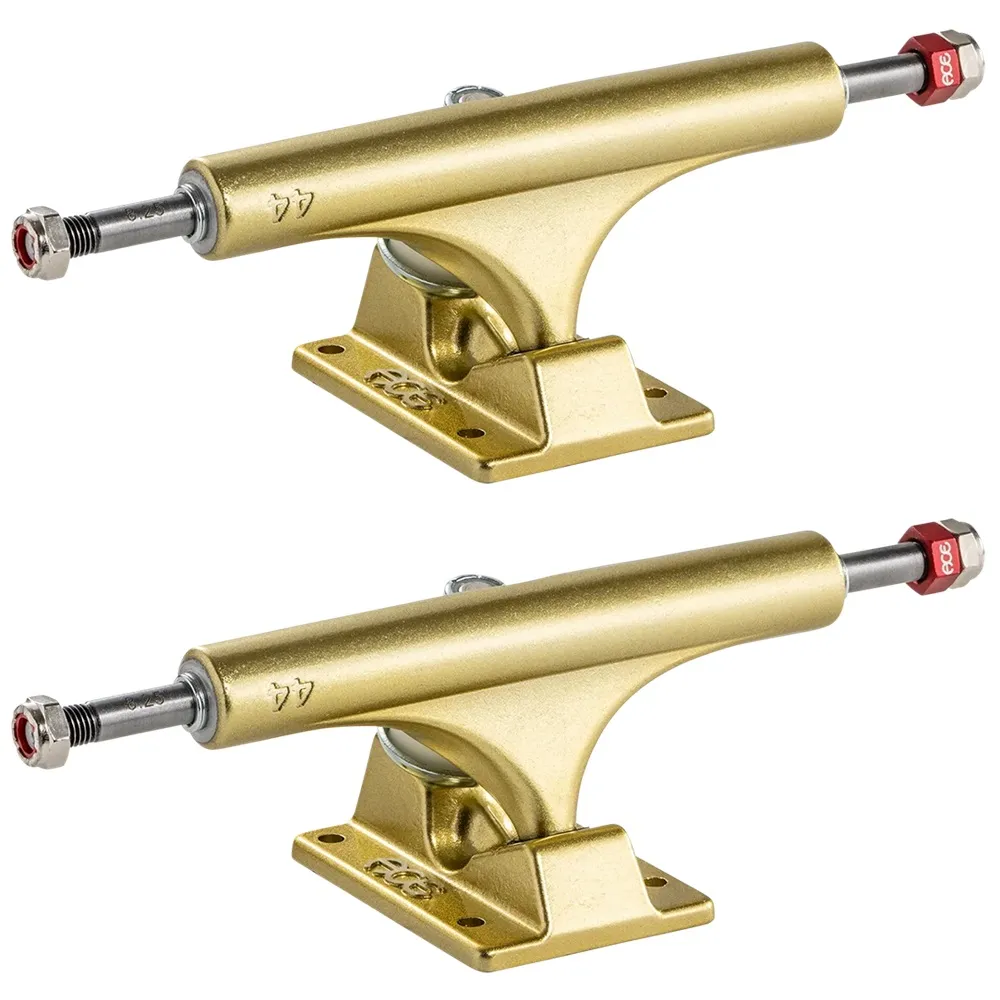

Ace AF1 set of 2 skateboard trucks.

These all-new ACE AF1 feature game-changing performance without deviating from the original Ace geometry. The AF1 is carefully manufactured using a proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

• Weight: 13.5 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts – no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.

ACE AF1 SIZE CHART:

Model — Axle Width — Deck Width
22 — 7.75" — 7.5" - 8.0"
33 — 8.0" — 7.75" - 8.12"
44 — 8.25" — 8.12" - 8.3"
55 — 8.5" — 8.3" - 8.75"
60 — 8.75" — 8.5" - 9.0"
66 — 9.0" — 8.75" - 9.25"
77 — 9.5" — 9.25" - 9.75"
80 — 10.0" — 9.75" & up
